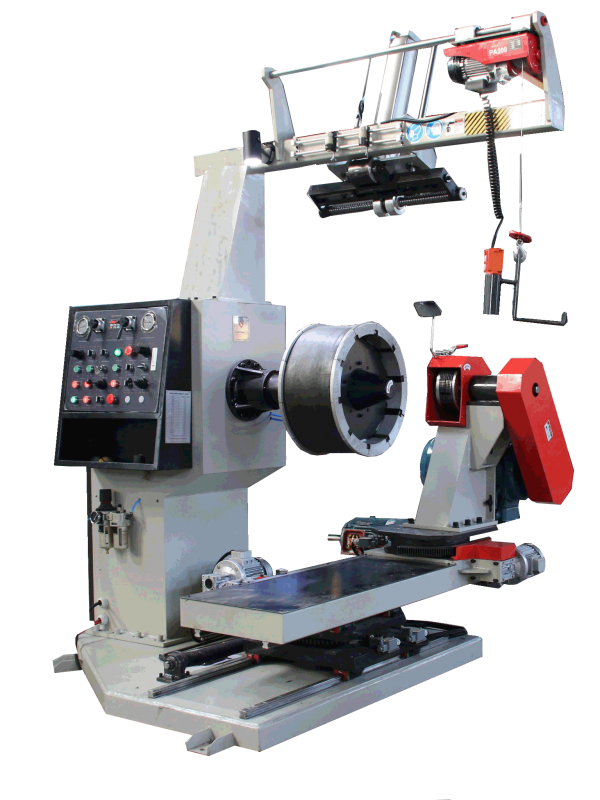

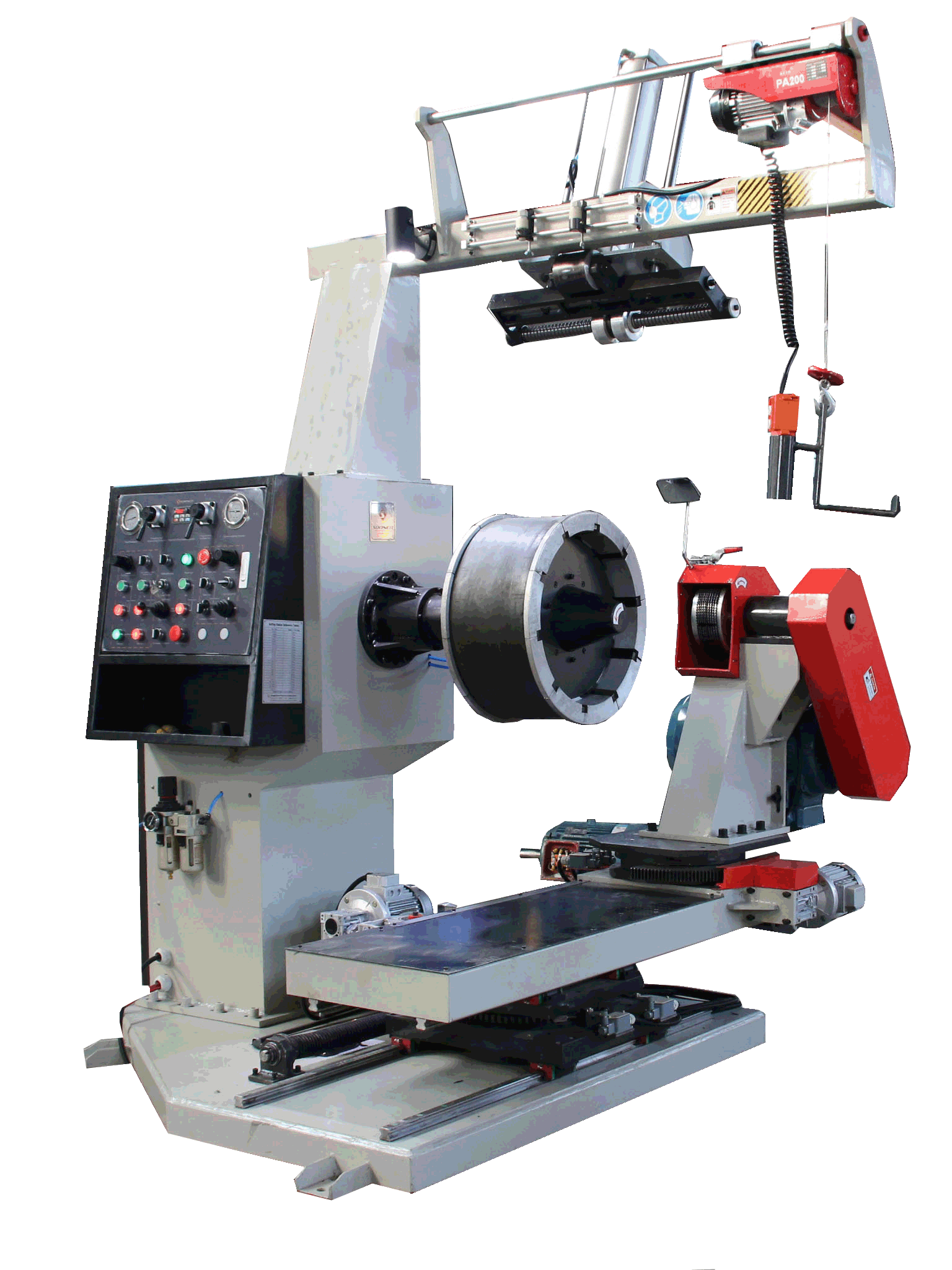

This buffing machine uses the 20 segmented expanding hub tire holding system, with two set of expanding hub for 15″-16″ and 20″-22.5″ and simple dust collector as standard equipped. And also has the automatic tire lifting, automatic travers buffing, tire rotation speed adjustment and auto buffing radial adjustment function.
Optional Function
ú Sidewall Cleaning
ú Cyclone Dusty Collector
ú Circumference Measurement
ú Sidewall Brushing and Buffing
ú Manual Buffing and Brushing Arm
ú Automatic Shoulder Buffing( Double Arc Buffing)
Technical Parameter
ú Power: 27KW
ú Electric Supply: 3 Phases
ú Working Pressure: 0.7MPA
ú Tire Size Range: 15”-22.5”
ú Max Rim Size: 24”
ú Max Diameter: 1300MM
ú Max Tread Width: 320MM
ú Buffing Radian Range: 450-1000MM
Package
ú Overall: 2000*1800*2400MM
ú Weight: 1200KG
Recommend: This buffing machine is matched for 10,12,14 Tire Curing Chamber
