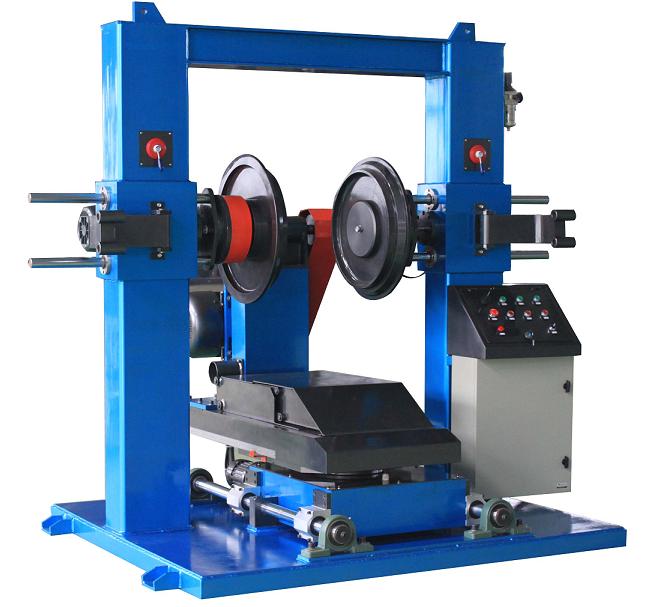

“H”Series Buffing Machine BF-C-24
Standard Function Description
- Buffing head has water cooling and thermal protection function. Over 140℃,auto stop buffing
- Auto air inflation by chuck plates, exact centering
- Automatic tyre lifting function, reduce the labor force
Advanced Function Description
- Manual shoulder buffing
- Double arc shoulder buffing
- Sidewall buffing and brushing arm
- Tread circumference measurement
- Surplus rubber thickness measurement
Technical Description:
| Overall： | 2180mm*2135mm*2215mm |
| Weight： | 4000kg |
| Rim diameter range： | 22.5”-24” |
| Outer diameter range： | 500mm -1200mm |
| Air pressure： | 1Mpa |
| Voltage & frequency： | AC 380V/50 HZ |
| Power： | 20kw |
| Average buffing time： | 5mins |
